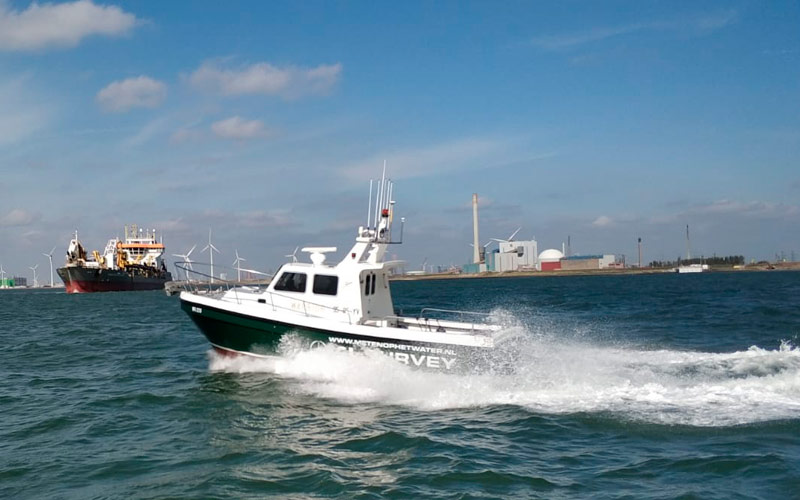

| GENERAL VESSEL INFORMATION |
| Name: |
Warrior |
| Flag: |
Dutch |
| Built: |
2003 |
| Type: |
Cygnus Cyclone 30 |
| Length: |
9.10 m |
| Width: |
3.30 m |
| Draft: |
0.80 m |
| Gross Tonnage: |
4 ton |
| SPEED |
| Max. speed: |
35 knots |
| Cruising speed: |
22 knots |
| Survey speed: |
3-15 knots |
| MACHINERY |
| Engines: |
2x Yanmar LP6 |
| Output: |
2x 315 HP |
| Propulsion: |
Twin screw heckdrive, propellors |
| Electric systems: |
6.5 and 10.7 KVA 240V/50hz |
| FUEL CONSUMPTION |
| Total capacity: |
1000 L Diesel |
| Cruising speed: |
65 L/h |
| Survey speed: |
15 L/h |
| INTERIOR |
| Seating: |
4 seats |
| Heating: |
yes |
| Toilet: |
yes |
| Refrigirator: |
yes |
| Galley: |
2 burner stove |
| Water tank: |
150 L |
| Waste water tank: |
100 L |
| SAFETY |
| Life jackets: |
6 |
| Survival suits |
2 |
| Life raft |
1 (6 pers) |
| Fire extinguisher |
2x bridge accomodation |
| Fire extinguisher automatic |
1x engine room |
| NAVIGATION EQUIPMENT |
| Radar: |
Koden |
| AIS: |
Class A |
| VHF: |
2x Sailor DSC VHF |
| SURVEY EQUIPMENT |
| Navigation: |
Trimble BD982 Dual antenna RTK |
| GPS-RTK accuracy: |
1 cm with Ekinox-E INS |
| Gyro: |
Trimble BD982 inc with SBG Ekinox-E |
| Gyro accuracy: |
0.05° |
| Motion: |
SBG Ekinox-E INS |
| Motion accuracy: |
0.02°, 5 cm Heave, 2.5 cm delayed heave |
| Sound velocity: |
AML MinosX |
| Multibeam: |
Kongsberg EM2040c MKII Dualhead |
| Singlebeam: |
Reson Navisound 620 |
| Transducers: |
1x 200Khz 9° 1x 33khz |
| Software: |
Navaq |
