SurveySupport

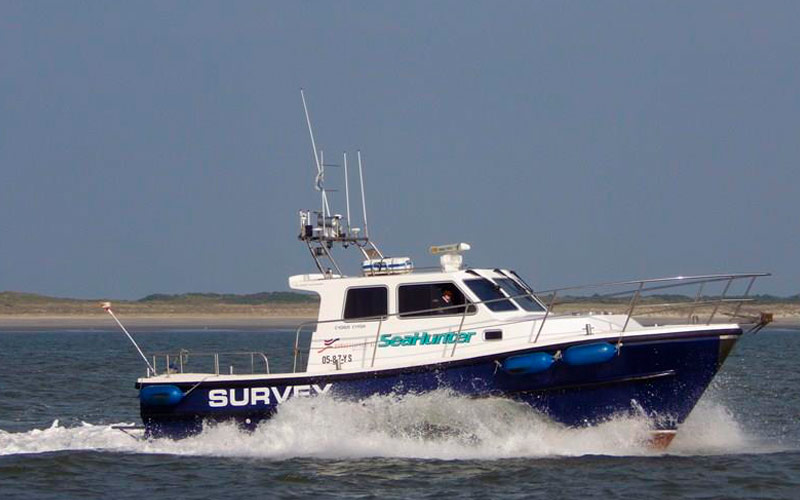

Seahunter





GENERAL VESSEL INFORMATION
Name: Seahunter
Flag: Dutch
Built: 2002
Type: Cygnus cyfish 33
Length: 9.97 m
Width: 3.65 m
Draft: 0.80 m
Gross Tonnage: 7 ton
SPEED
Max. speed: 30 knots
Cruising speed: 20 knots
Survey speed: 3-16 knots
Gross:  Tonnage 8
MACHINERY
Engines: 2x Yanmar 6LP
Output: 2x 315 HP
Propulsion: Twin screw heckdrive, propellors
Electric systems: 6.5 and 10.7 KVA  240V/50hz
FUEL CONSUMPTION
Total capacity: 1000 L Diesel
Cruising speed: 65 L/h
Survey speed: 15 L/h
INTERIOR
Seating: 4 seats
Heating: yes
Toilet: yes
Refrigirator: yes
Galley: 2 burner stove
Water tank: 150 L
Waste water tank: 100 L
SAFETY
Life jackets: 6
Survival suits 2
Life raft 1 (6 pers)
Fire extinguisher 2x bridge accomodation
Fire extinguisher automatic 1x engine room
NAVIGATION EQUIPMENT
Radar: Simrad
AIS: Class A
VHF: 2x Sailor DSC VHF
SURVEY EQUIPMENT
Navigation: Trimble BD982 Dual antenna RTK
GPS-RTK accuracy: 1 cm with Ekinox-E INS
Gyro: Trimble BD982 inc with SBG Ekinox-E
Gyro accuracy: 0.05°
Motion: SBG Ekinox-E INS
Motion accuracy: 0.02°, 5 cm Heave, 2.5 cm delayed heave
Sound velocity: AML MinosX
Multibeam: Kongsberg EM2040c MKII Dualhead
Singlebeam: Reson Navisound 620
Transducers: 1x 200Khz 9° 1x 33khz
Software: Navaq
